Saunum Air L 10 Package Air L Series, 9.8kW Sauna Heater Package

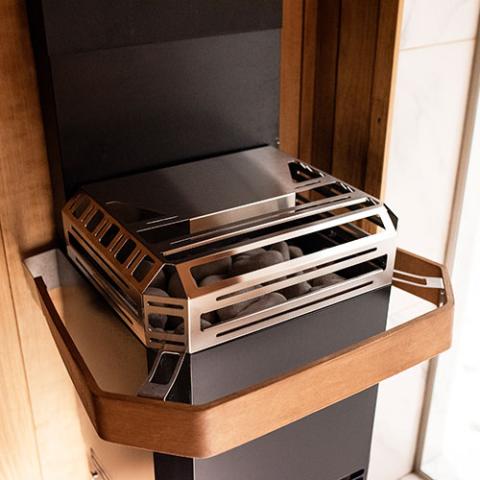

Air L 10 Sauna Heater

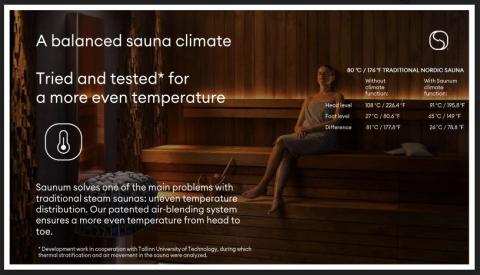

• Revolutionary Air Mixing Technology – No more cold feet! No other sauna heater has Saunum's patented air blending system, which mixes cooler, oxygen-rich air from the floor with hot, oxygen-poor air off the ceiling and distributes it throughout the room for a more even temperature and better breathability. Saunum ensures that heat and oxygen are more consistent from head to toe.
• Scandinavian Design – With its elegant black steel finish, Saunum combines contemporary Scandinavian design and premium-quality materials.
• Massive Stone Capacity – Stones are the heart of a Nordic sauna. Greater stone capacity results in softer, more even heat, and can produce more luxurious steam. The Air L boasts a massive 265 pound stone capacity.
• Himalayan Salt Reservoir – Himalayan Salt Spheres are positioned within the air stream so that salt ions are propelled throughout the sauna to deliver health benefits more effectively.
• Wi-Fi Control – The available AirIQ Wi-Fi Control allows you to activate a tailored sauna profile and have your custom sauna ready at the time that you specify on your mobile device.
• Dry your Sauna – Go ahead, toss water onto the rocks! Saunum is engineered for water-tossing, and when you're done enjoying the steam, the patented fan system will conveniently help dry your sauna.

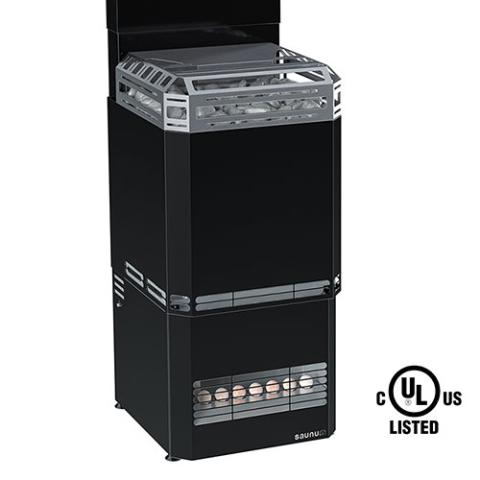

• UL Certification – Safety and reliability are priorities at Saunum, and each product is engineered to exceed strict UL standards.
• Available Aromatherapy – Add another sensory layer with Saunum's optional aromatherapy system, which infuses aroma into the steam to further transform your experience.
• For sauna rooms from 247 to 459 cu. ft.

AirIQ Wi-Fi Control

• Temperature selection ranges from 104°F - 194°F (40°C - 90°C)
• Allows you to set the operating time of the heater: Up to 1 hour in a private sauna, up to 6 hours in a public sauna
• Allows you to select up to 3 preset sauna settings: Selectable temperature, time, climate device speed
• Classic Nordic Steam Sauna
• Humid Steam-Rich Sauna
• Mild, Relaxing Sauna
• AirIQ Wi-Fi allows for sauna session scheduling for a specific day, time, and sauna type for the week
• Built-in Wi-Fi interface for Saunum mobile app available on AppStore and Google Play
• Modbus integration for smart home connection
• Notifications will be conveniently displayed directly onto your mobile device via the Saunum mobile app
• Multi-language menu includes English, German, Estonian, Finnish, Russian, Swedish, and Slovenian
• Outside sauna room installation
• Screen lock
• Child safety lock
• Temperature sensor
• Door sensor

Sauna Stones

• High-quality olivine diabase raw stone
• Rounded, pre-washed, and ready to use
• Durable with high-heat capacity
• Stones range from 2" to 4" (5-10 cm)

• Model - AIR L 10 PKG
• Heat Equalizing System
• Model - AIR 10
• Certification/Global Safety Rating - UL (Underwriters Laboratories)
• Heat/Steam Equalizer Module - 3-Speeds, Whisper-Quiet Operation
• Ceiling Hot Air Intake - 17.72" x 4" (450.09 x 101.6 mm)
• Cool Air Intake Type - Adjustable Valve, Side-Mounted, 12" (304.8 mm) Off Floor
• Cool Air Intake Size - 2" x 2.75" (50.8 x 69.85 mm)
• Blended Air Output - 4.31" x 14.13" (109.47 x 358.90 mm)
• Himalayan Salt and Aroma Tray Type - Removable, Slotted
• Himalayan Salt and Aroma Tray Size - 16.5" x 4.5" (419.1 x 111.76 mm)

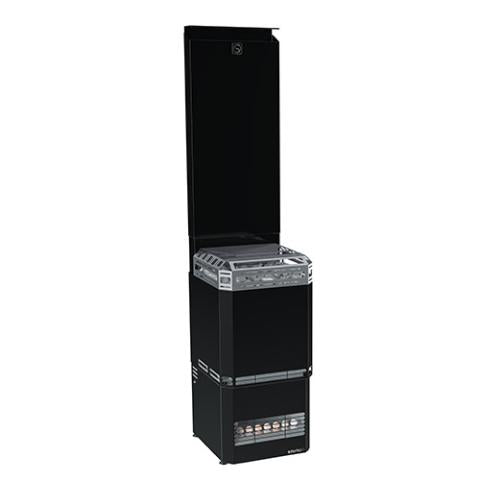

Sauna Heater System - Model AIR 7

• Certification/Global Safety Rating - UL (Underwriters Laboratories)
• Heater Body Style - Solid Steel -Nordic Black
• Heating Elements - Incoloy (Stainless Steel)
• Heating Element Protection - Air Tunnels, Slotted Stainless Steel, Three
• Room Size - 247-459 cu.ft.
• Wattage Rating - 9800
• Stone Capacity - 265 lbs (120 kg)
• Operating Voltage - 240 VAC
• Phase - Single
• Amperage - 41.66A
• Weight - 147 lbs (67 kg)
• Width - 19" (483mm)
• Depth - 18.1" (460mm)
• Heater Height (Including Telescopic Air Intake)72.25-95" (1850-2400mm)
• Minimum Ceiling Height - 71.48" (1815.6 mm)
• Stone Size - 2" to 4" (5-10 cm)
• Circuit Breaker - 50 Amp
• Wire Size to Power Unit - #6 + N + G
• Shipping Weight with Stones - 412 lbs (187 kg)

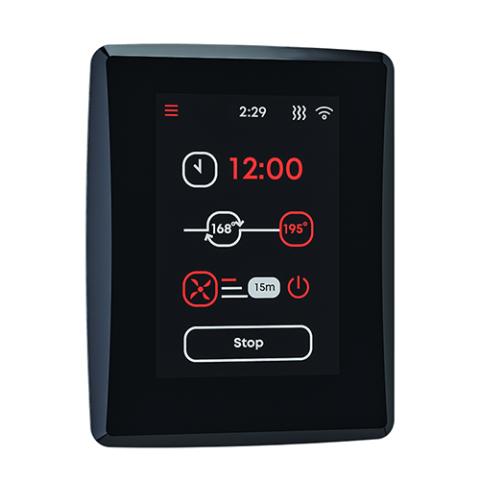

Display Panel - Model AIRIQ WI-FI

• Certification/Global Safety Rating - UL (Underwriters Laboratories)TypeDigital, Soft-Touch
• Response - Tactile with Haptic Feedback Technology
• Language Selection - 16-Languages
• Wi-Fi Capability - Wi-Fi, App-Based Updates, and Operation
• Notifications - Sauna is Ready, Heater Status, Open Door, and Overheating Protection
• Safety Features Admin, Screen Lock, Door Sensor, and Overheat Protection
• Color - Nordic Black
• Heat Equalizing Control - 3-Speed Adjustability
• Width - 3.3" (83.82 mm)
• Depth - 8" (20.32 mm)
• Height - 4.1" (104.14 mm)
• IP Rating - IP20
• Minimum Temperature Setting - 104-Degrees Fahrenheit (40-Celcius)
• Maximum Temperature Setting - 194-Degrees Fahrenheit (90-Celcius)
• Duration Timer - 1 - 6 Hours
• Display Panel Cable - 4-Conductor Cable (150-Degree C), 20AWG, 15' (475.2 cm)
• Door Sensor and Cable Assembly - 2-Conductor Cable (150-Degree C), 20AWG, 9.83' (299.62 cm)
• Door Sensor Probe - 1" Long and .24" Diameter (25 x 6 mm)
• Operating Temperature Range-4 - 145-Degrees Fahrenheit (-20 - 62 Celsius)
• Programmability - Weekly Scheduling with Three Programmable Sessions
• Temperature Settings - Fahrenheit or Celsius
• Region Settings - North American and European Versions
• Room Temperature Sensor - Pre-Mounted with Integrated Cable (150- Degree C), 9.5' (289.56 cm)

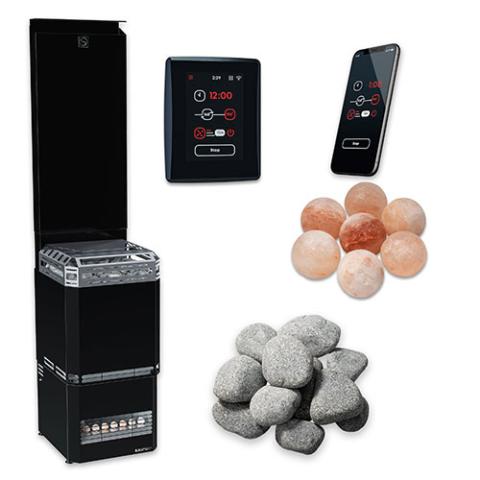

Included in the package

Air L 10 Sauna Heater

• 9.8kW Sauna Heater

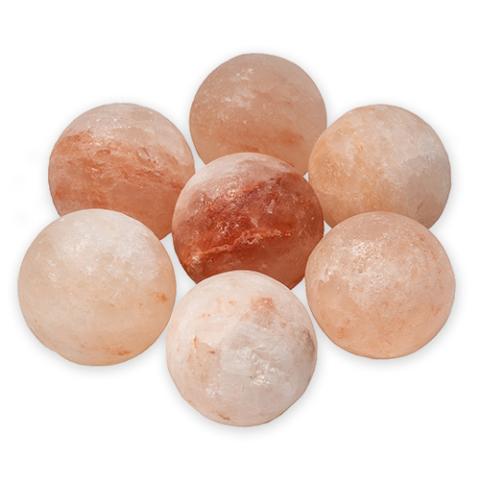

• Himalayan Salt Spheres (7)
• Himalayan Salt Tray
• Hot Air Intake Cap
• Hot Air Intake
• Stone Basket
• Air Outake Grille
• Cool Air Intake Valve
• Protective Grill
• Temperature Sensor
• Installation and Operation Manual
• 2-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)

AirIQ Wi-Fi Control

• Soft-Touch Display Panel (Wi-Fi App-Based Updates and Operation)
• Wall Mounting Plate and Fasteners
• Power Unit
• Door Sensor Magnet
• Installation and Operation Manual
• 2-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)

Sauna Stones

• 265 lbs of 2" to 4" (5-10 cm) Round Sauna Stones
